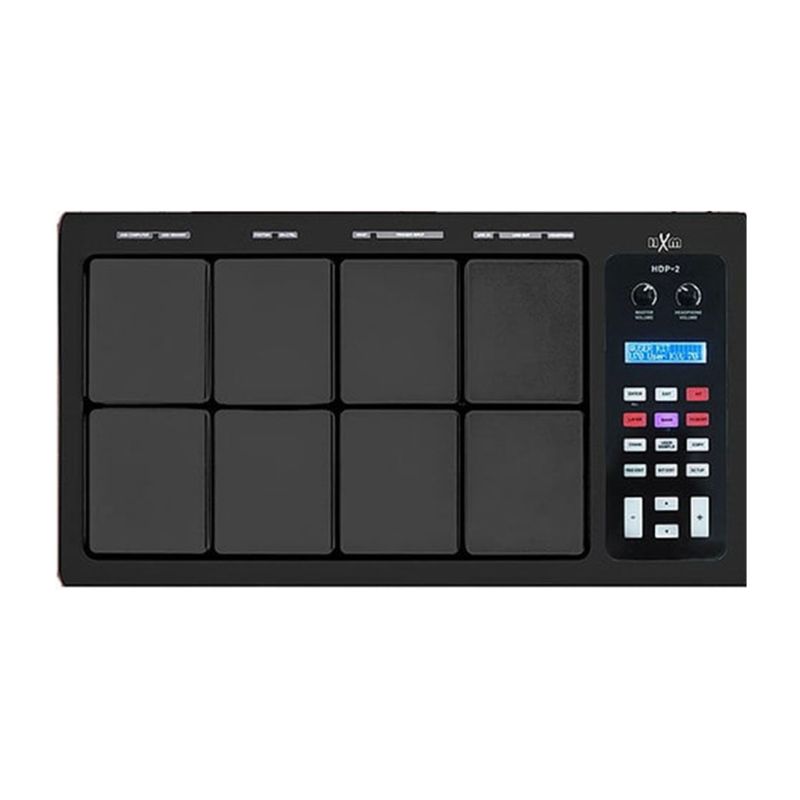

HXM HDP-2 Electric Drum Pad

The HXM HDP-2 Electric Percussion Pad is a highly capable, professional-tier 8-pad digital percussion multi-pad (frequently used as an Octapad style layout). It targets live performers, session musicians, music producers, and studio setups looking for deep customizability, massive internal polyphony, and user sampling capabilities without breaking the bank. Technical Specifications & Hardware Layout Feature Specification Details Pad Configuration 8 Velocity-Sensitive Built-In Pads Internal Voices 1,577 High-Definition Sounds Polyphony 189 Notes Drum Kits 140 Total (70 Factory Presets 70 User Customizable Kits) User Sampling Memory 500 MB (Stores up to 500 custom WAV files) Display Backlit LCD (2 Rows x 16 Characters) Dimensions 553.8(W) x 300.7(D) x 77.3(H) mm Weight 3.76 kg Dual-Layer Sound Engine One of the most powerful aspects of the HDP-2 is its Layer and Bank function. Each of the 8 velocity-sensitive pads can handle two separate sound layers simultaneously (Layer A and Layer B). You can choose to trigger a single clear voice or blend/stack two separate tones together. This is massive for creating textured, punchy hybrid patches—such as stacking an acoustic snare with an electronic clap, or layering traditional sub-continental folk percussion with western drum elements. Deep On-Board DSP Processing & Pad Editing Unlike basic sample triggers, the HDP-2 gives you microscopic control over how each pad sounds and acts: Per-Pad Tweaking: Modify individual parameters like Voice, Volume, Coarse Pitch, Fine Pitch, Decay, Pan, and Gate Time. You can also select custom trigger velocity curves to match your playing style. On-Board Studio Effects: Packed with a master 4-band parametric Equalizer (with adjustable Gain, Frequency, and Q factor) and a dedicated Compressor (featuring Threshold, Ratio, Attack, Release, and Boost controls). Time-Based FX: Dedicated FX Sends on each pad feed into high-quality internal Reverb, Delay, Chorus, and Flanger processors (featuring 23 adjustable presets). Expansion & Triggering Flexibility If 8 pads aren’t enough, the back panel allows you to expand the unit into a complete mini electronic drum kit or a massive stage percussion rig: External Triggers: Includes 3x 1/4″ External Trigger Inputs to plug in secondary mesh pads or cymbals (can accept dual-zone triggers, supporting separate head/rim actions). Pedal Control: Dedicated Hi-Hat Input (supporting real hi-hat open/closed 4-level detection and Foot Splash functionality) plus a Hi-Hat Control Input and a dedicated Foot Switch Input for kick drum triggers. Connectivity Panel The HDP-2 serves beautifully as both a standalone stage engine and a studio MIDI master controller: USB MIDI: Instantly connects to computers, allowing you to use the 8 pads to trigger external software samplers, VSTs, or DAWs. USB Memory Port: Used to load external user samples directly into the unit’s 500 MB onboard flash storage. Audio Outputs: Main Line Out L/R (1/4″ jacks) for routing stereo signals out to mixing consoles, stage monitors, or PAs, plus a dedicated 1/8″ Headphone output for silent practice. Audio Input: 1/8″ Line In (AUX) to play along with backing tracks from a phone or media player. Wireless: Features integrated Bluetooth connectivity (optional/region-dependent) for wireless backing track playback. Category: Drums & Percussion
